As simple as the term seems, Computer Vision is a complex technology and a critical factor in the rise of automation. There are many computer vision applications – from facial recognition, object recognition to image restoration, motion detection, and more. Computer vision applications are seen in a plethora of industries such as tech, medical, automobiles, manufacturing, fitness, security systems, mining, precision agriculture, etc.

But first, let’s address the question, “What is computer vision?” In simple terms, computer vision trains the computer to visualize the world just like we humans do. Computer vision techniques are developed to enable computers to “see” and draw analysis from digital images or streaming videos. The main goal of computer vision problems is to use the analysis from the digital source data to convert it into something about the world.

Computer vision uses specialized methods and general recognition algorithms, making it the subfield of artificial intelligence and machine learning. Here, when we talk about drawing analysis from the digital image, computer vision focuses on analyzing descriptions from the image, which can be text, object, or even a three-dimensional model. In short, computer vision is a method used to reproduce the capability of human vision.

How are Neural Networks Modernizing Computer Vision?

Traditional Approach in Computer Vision

Before 2012, the working of computer vision was quite different from what we are experiencing now. For example, if we wanted the computer system to recognize the image of a dog, we had to include the understanding and explanation of the dog in the system itself for the output. A dog consists of several different features: head, ears, four legs, and a tail. All these details were stored in the system’s memory for conceptual understanding for recognizing the dog, which further triggered the output. The object’s explanation used to be stored in the form of pixels, i.e., most minor units of visual data.

When the object needed to be recognized in the future, the system divided the digital image into subparts of raw data and matched it with the pixels in its memory. This process was not efficient enough as the system would fail if the slightest change were observed in the color of the object or even if the level of lightness was changed. Also, it became difficult to store the detail of every single object individually in the system for its future recognition. Eventually, it became burdensome for the engineers to craft the rules to detect the features of images manually.

Modern Approach in Computer Vision

Eventually, after lots of research and modern automation systems, this traditional computer vision technique was replaced with advanced machine learning, specifically deep learning algorithms that make more effective use of computer vision. Traditional computer vision techniques follow the top-down flow for identifying the image using its features, whereas deep learning models work vice versa.

The neural network model of machine learning trains the system to use a bottom-up approach. The algorithm analyzes the dog’s features in general and classifies it with previously unseen images to draw the most accurate results. This process happens by training the model using massive datasets and countless training cycles.

Modernizing Computer Vision

Neural network-backed computer vision is possible because of the abundance of image data available today and the reduced computing power required to process the datasets. Millions of image databases are accurately labeled for deep learning algorithms to work on. It has helped deep learning models successfully surpass the hard work of traditional machine learning models for manual feature detectors.

Therefore, the significant difference between the traditional vision system versus the new neural network model is that humans have to train the computer “what should be there” in the image in the conventional computer vision system. In contrast, in the modern neural network model, the deep learning algorithm trains itself for analyzing “what is there” in the image.

This modern neural network algorithm is precious for various things like diagnosing tissue samples because, as per studies, human visuals limit the image resolution to 2290 pixels per inch. Hence, even the slightest change in the density can change the final results and mislead the experts.

Moreover, when it comes to humans working excessively on the exact image resolution for over a long time, it creates human fatigue, which results in poor business outcomes and risks of lives when the problems are related to infrastructures or aircraft maintenance. But this problem comes to an end by improving the ability of computer vision systems to get precise results and perform continuously over a long time using neural network models.

Deep Neural Networks Addressing 8 Challenges in Computer Vision

As studied earlier, computer networks are one of the most popular and well-researched automation topics over the last many years. But along with advantages and uses, computer vision has its challenges in the department of modern applications, which deep neural networks can address quickly and efficiently.

applications_of_neural_networks_in_computer_vision

1. Network Compression

With the soaring demand for computing power and storage, it is challenging to deploy deep neural network applications. Consequently, while implementing the neural network model for computer vision, a lot of effort and work is put in to increase its precision and decrease the complexity of the model.

For example, to reduce the complexity of networks and increase the result accuracy, we can use a singular value decomposition matrix to obtain the low-rank approximation.

2. Pruning

After the model training for computer vision, it is crucial to eliminate the irrelevant neuron connections by performing several filtrations of fine-tuning. Therefore, as a result, it will increase the difficulty of the system to access the memory and cache.

Sometimes, we also have to design a unique collaborative database as a backup. In comparison to that, filter-level pruning helps to directly refine the current database and determine the filter’s importance in the process.

3. Reduce the Scope of Data Values

The data outcome of the system consists of 32 bits floating point precision. But the engineers have discovered that using the half-precision floating points, taking up to 16 bits, does not affect the model’s performance. As the final solution, the range of data is either two or three values as 0/1 or 0/1/-1, respectively.

The computation of the model was effectively increased using this reduction of bits, but the challenge remained of training the model for two or three network value core issues. As we can use two or three floating-point values, the researcher suggested using three floating-point scales to increase the representation of the network.

4. Fine-Grained Image Classification

It is difficult for the system to identify the image’s class precisely when it comes to image classification. For example, if we want to determine the exact type of a bird, it generally classifies it into a minimal class. It cannot precisely identify the exact difference between two bird species with a slight difference. But, with fine-grained image classification, the accuracy of image processing increases.

Fine-grained image classification uses the step-by-step approach and understanding the different areas of the image, for example, features of the bird, and then analyzing those features to classify the image completely. Using this, the precision of the system increases but the challenge of handling the huge database increases. Also, it is difficult to tag the location information of the image pixels manually. But in comparison to the standard image classification process, the advantage of using fine-grained classification is that the model is supervised by using image notes without additional training.

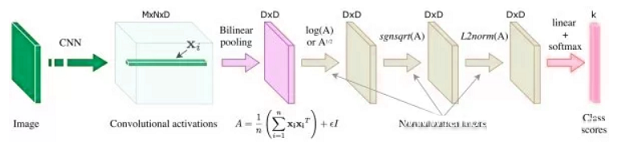

5. Bilinear CNN

Bilinear CNN

Bilinear CNN helps compute the final output of the complex descriptors and find the relation between their dimensions as dimensions of all descriptors analyze different semantic features for various convolution channels. However, using bilinear operation enables us to find the link between different semantic elements of the input image.

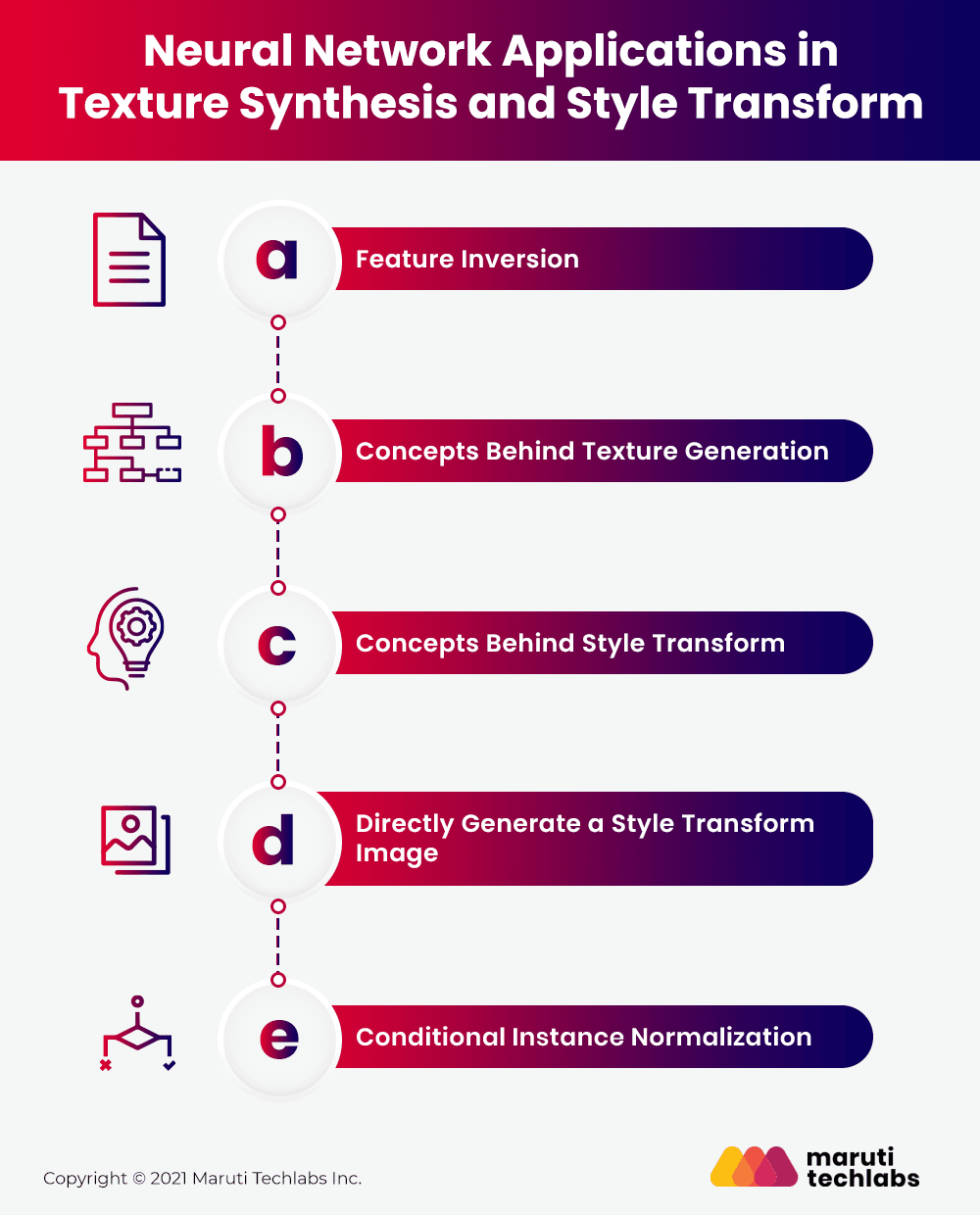

6. Texture Synthesis and Style Transform

When the system is given a typical image and an image with a fixed style, the style transformation will retain the original contents of the image along with transforming the image into that fixed style. The texture synthesis process creates a large image consisting of the same texture.

neural network application in synthesis

        a. Feature Inversion

The fundamentals behind texture synthesis and style transformation are feature inversion. As studied, the style transformation will transform the image into a specific style similar to the image given using user iteration with a middle layer feature. Using feature inversion, we can get the idea of the information of an image in the middle layer feature.

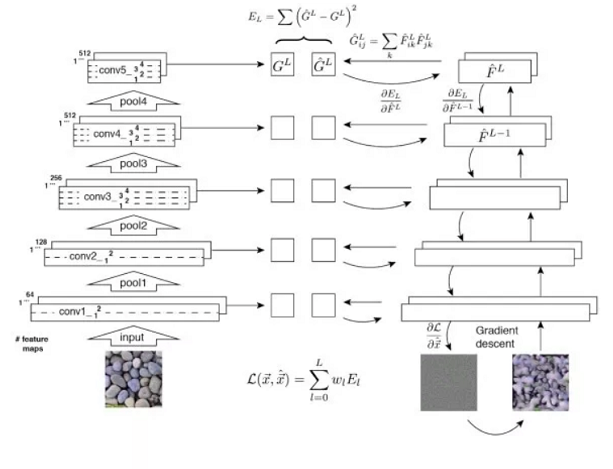

        b. Concepts Behind Texture Generation

The feature inversion is performed over the texture image, and using it, the gram matrix of each layer of the texture image is created just like the gram matrix of each feature in the image.

Concepts behind Texture Generation

The low-layer features will be used to analyze the detailed information of the image. In contrast, the high layer features will examine the features across the larger background of the image.

        c. Concept Behind Style Transformation

We can process the style transformation by creating an image that resembles the original image or changing the style of the image that matches the specified style.

Concept behind Style Transformation

Therefore, during the process, the image’s content is taken care of by activating the value of neurons in the neural network model of computer vision. At the same time, the gram matrix superimposes the style of the image.

        d. Directly Generate a Style Transform Image

The challenge faced by the traditional style transformation process is that it takes multiple iterations to create the style-transformed image, as suggested. But using the algorithm which trains the neural network to generate the style transformed image directly is the best solution to the above problem.

Directly Generate a Style Transform Image

The direct style transformation requires only one iteration after the training of the model ends. Also, calculating instance normalization and batch normalization is carried out on the batch to identify the mean and variance in the sample normalization.

        e. Conditional Instance Normalization

The problem faced with generating the direct style transformation process is that the model has to be trained manually for each style. We can improve this process by sharing the style transformation network with different styles containing some similarities.

It changes the normalization of the style transformation network. So, there are numerous groups with the translation parameter, each corresponding to different styles, enabling us to get multiple styles transformed images from a single iteration process.

Case Study - Medical Record Processing using NLP

7. Face Verification/Recognition

There is a vast increase in the use cases of face verification/recognition systems all over the globe. The face verification system takes two images as input. It analyzes whether the images are the same or not, whereas the face recognition system helps to identify who the person is in the given image. Generally, for the face verification/recognition system, carry out three basic steps:

  • Analyzing the face in the image
  • Locating and identifying the features of the image
  • Lastly, verifying/recognizing the face in the image

The major challenge for carrying out face verification/recognition is that learning is executed on small samples. Therefore, as default settings, the system’s database will contain only one image of each person, known as one-shot learning.

        a. DeepFace

It is the first face verification/recognition model to apply deep neural networks in the system. DeepFace verification/recognition model uses the non-shared parameter of networks because, as we all know, human faces have different features like nose, eyes, etc.

Therefore, the use of shared parameters will be inapplicable to verify or identify human faces. Hence, the DeepFace model uses non-shared parameters, especially to identify similar features of two images in the face verification process.

        b. FaceNet

FaceNet is a face recognition model developed by Google to extract the high-resolution features from human faces, called face embeddings, which can be widely used to train a face verification system. FaceNet models automatically learn by mapping from face images to compact Euclidean space where the distance is directly proportional to a measure of face similarity.

facenet

Here the three-factor input is assumed where the distance between the positive sample is smaller than the distance between the negative sample by a certain amount where the inputs are not random; otherwise, the network model would be incapable of learning itself. Therefore, selecting three elements that specify the given property in the network for an optimal solution is challenging.

        c. Liveness Detection

Liveness detection helps determine whether the facial verification/recognition image has come from the real/live person or a photograph. Any facial verification/recognition system must take measures to avoid crimes and misuse of the given authority.

Currently, there are some popular methods in the industry to prevent such security challenges as facial expressions, texture information, blinking eye, etc., to complete the facial verification/recognition system.

8. Image Search and Retrieval

When the system is provided with an image with specific features, searching that image in the system database is called Image Searching and Retrieval. But it is challenging to create an image searching algorithm that can ignore the slight difference between angles, lightning, and background of two images.

neural_network_application

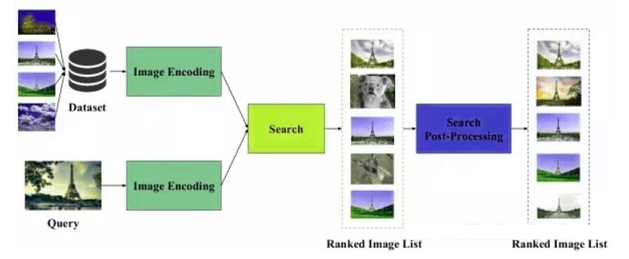

        a. Classic Image Search Process

Classic Image Search Process

As studied earlier, image search is the process of fetching the image from the system’s database. The classic image searching process follows three steps for retrieval of the image from the database, which are:

  • Analyzing appropriate representative vectors from the image
  • Applying the cosine distance or Euclidean distance formula to search the nearest result and find the most similar image representative
  • Use special processing techniques to get the search result.

The challenge faced by the classic image search process is that the performance and representation of the image after the search engine algorithm are reduced.

        b. Unsupervised Image Search

The image retrieval process without any supervised outside information is called an unsupervised image search process. Here we use the pre-trained model ImageNet, which has the set of features to analyze the representation of the image.

        c. Supervised Image Search

Here, the pre-trained model ImageNet connects it with the system database, which is already trained, unlike the unsupervised image search. Therefore, the process analyzes the image using the connection, and the system dataset is used to optimize the model for better results.

        d. Object Tracking

The process of analyzing the movement of the target in the video is called object tracking. Generally, the process begins in the first frame of the video, where a box around it marks the initial target. Then the object tracking model assumes where the target will get in the next frame of the video.

The limitation to object tracking is that we don’t know where the target will be ahead of time. Hence, enough training is to be provided to the data before the task.

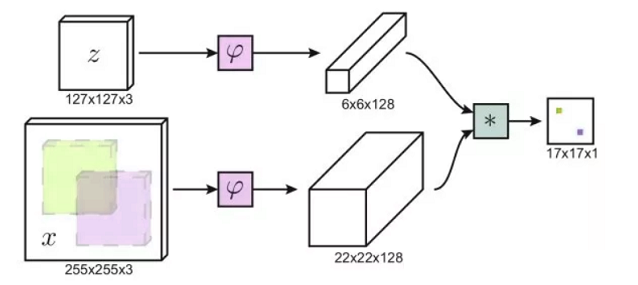

        e. Health Network

The usage of health networks is just similar to a face verification system. The health network consists of two input images where the first image is within the target box, and the other is the candidate image region. As an output, the degree of similarity between the images is analyzed.

Health Network

In the health network, it is not necessary to visit all the candidates in the different frames. Instead, we can use a convolution network and traverse each image only once. The most important advantage of the model is that the methods based on this network are high-speed and can process any image irrespective of its size.

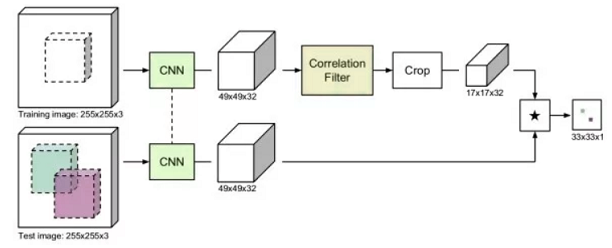

        f. CFNet

CFNet is used to elevate the tracking performance of the weighted network along with the health network training model and some online filter templates. It uses Fourier transformation after the filters train the model to identify the difference between the image regions and the background regions.

CFNet

Apart from these, other significant problems are not covered in detail as they are self-explanatory. Some of those problems are:

  • Image Captioning: Process of generating short description for an image
  • Visual Question Answering: The process of answering the question related to the given image
  • Network Visualizing and Network Understanding: The process to provide the visualization methods to understand the convolution and neural networks
  • Generative Models: The model use to analyze the distribution of the image

Conclusion

A modern computer vision enables the system to visualize the data and analyze patterns and insights from the data. This data plays its importance in translating the raw pixels, which computer systems can interpret.

Compared to traditional computer vision models, deep learning techniques enable modern computer vision advancement by achieving greater precision in image classification, object detection, and semantic segmentation. We know that neural networks are part of deep learning and are trained instead of being programmed for performing specific tasks. Hence, it becomes easier for the system to understand the situation and analyze the result accordingly.

The traditional computer vision algorithms tend to be more domain-specific. In contrast, the modern deep learning model provides flexibility as the convolution neural network model can be trained using a custom dataset of the system.

With computer vision technology becoming more versatile, its applications and demand have also increased by leaps and bounds. At Maruti Techlabs, our computer vision services help businesses analyze enormous amounts of digital data generated regularly. By inculcating nested object classification, pattern recognition, segmentation, detection, and more, our custom-built computer vision apps and models allow businesses to reduce human effort, optimize operations and utilize this rich data to scale visual technology.
